Central Carolina Scale sells Transcell BSA S-Beam Tool Steel Load Cells for Scales

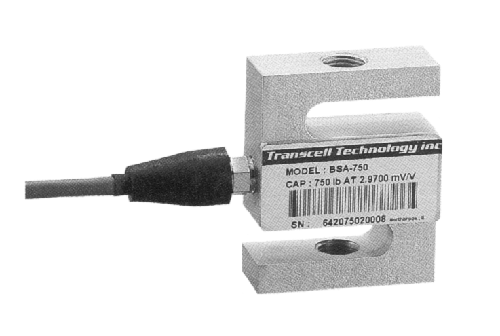

Transcell BSA S Z Loadcell

MODEL
PART NUMBER
DESCRIPTION
BSA-50
BSA-50
50 lb Capacity
BSA-100
BSA-100
100 lb Capacity
BSA-200
BSA-200
200 lb Capacity
BSA-250
BSA-250
250 lb Capacity
BSA-500
BSA-500
500 lb Capacity
BSA-1k
BSA-1k
1k lb Capacity
BSA-1.5k
BSA-1.5k
1.5k lb Capacity
BSA-5k
BSA-5k
5k lb Capacity



Rated Output:
3.0mV/V±1%
Zero Balance:
±1% of rated output
Creep after 20 mintues:
0.03% of rated output
Non-linearity:
0.03% of rated output
Hysteresis:
0.02% ofg rated output
Repeatability:
0.02% of rated output
Temp. effect on output:
0.002% of applied output/°C
Temp. effect on zero:
0.002% of rated output/°C
Safe Temperature Range:
-10°C to +80°C
Temp Compensated:
-10°C to +50°C
Safe Overload:
1.5 x rated capacity
Input Impedance:
380ohm ±30ohm
Output Impedance:
350ohm ±3ohm
Insulation Resistance:
>5000 megohms
Rated Excitation:
10V DC/AC
Maximum Excitation:
20V DC/AC
Cable Length:
20 feet





CAPACITY THREADS
50-300 lb. 1/4-28 UNF-2B
500-1K lb. 1/2-20 UNF-2B






Please call (919) 776-7737 for more information or to place an order today!
